Fanless Network Load Balancer
Compact but powerful Load Balancer get the best out of your network

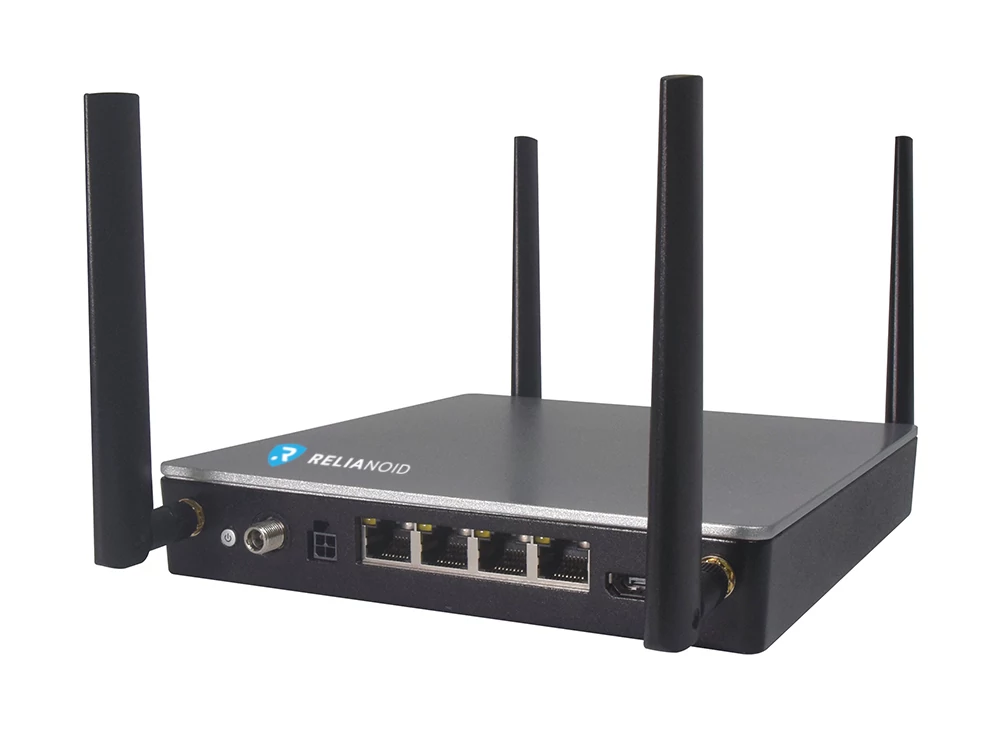

RNA1004-Fanless Hardware Appliance
DESCRIPTION
The RNA1004 Hardware Appliance, powered by 4 core processor,is a fanless and compact appliance powered with RELIANOID Community Edition and ability to seamlessly upgrade to Enterprise,secure and reliable application delivery controller to your business IT services, applications and networks.
| Weight | 0.9 kg |
|---|---|
| Dimensions | 16.8 × 18.3 × 32 cm |
WhY CHOOSING RELIANOID FANLESS NETWORK LOAD BALANCER?
Powered by 4 core processor, is a fanless and compact appliance powered with RELIANOID
Community Edition and ability to seamlessly upgrade to Enterprise,
secure and reliable application delivery controller to your business IT
services, applications and networks.
Massive scalability
Traffic distribution is totally programmable. Traffic scalability and distribution by weight, roundrobin, cpu load, memory, least connections, least response, etc. Support many protocols and applications. Advance HTTP application features
Security
Advance HTTPS features, ready for A+, SSL hardware acceleration, automated updates for security resources and optionally with EE upgrade: web application firewall, DoS protection, blacklists and DNSBL protection, VPN services
System
Advanced network management. Configuration backups to allow quick disaster recovery procedures. Monitoring through SNMP, RRD graphs and email notifications. Layered logs system. Optional active-passive cluster service (EE upgrade)
Usability
Responsive and user friendly web graphic user interface. Easy upgrades and maintenance.
What about Performance?
Hardware Specifications
| CPU | Intel Celeron J6412, Base Frequency 2 GHz with 4 cores |
| Memory | 8GB DDR4 (max. 32GB) |
| LAN | 4×25 GbE RJ45 |
| Storage | 256 GB M.2 SSD |
| Console | 1 x RJ45 |
| Expansion Slot | NO |
| USB | 1 x USB 3.0 |
| Power Supply | 40W single PSU, AC 100~240@50~60Hz |
| Dimensions | 1U 19’’: 183(W) x 32(H) x 168(D) mm, or 7.20”(W) x 1.26”(H) x 6.61”(D) |
| Weight | 0.9 kg |
| Operating Temperature | 0 ~ 40°C, or 32°F ~ 104°F |
| Cooling System | Fanless |
| Operating Humidity | 5 ~ 90% |
| IPMI card | NO |
| Certifications | RoHS, UL, VCCI, UKCA, CE/FCC Class B(Class A with PoE) |
System Specifications
Multilayered Application Delivery Controller
A comprehensive Application Delivery Controller solution designed to serve as a flexible and highly available Fanless Hardware Load Balancer. It supports multilevel functionality across L2, L3, L4, and L7, allowing different load balancing methods such as SD-WAN, network load balancing, application load balancing and global service load balancing. Designed for optimal traffic management, robust application delivery, and seamless scalability in on-premises, cloud or hybrid environments.
Optimized and limitless system
The RSA series are optimized Linux networking systems without restrictions in terms of the number of cores, memory used, throughput or other system parameters. Get all the features and the maximum settings from the system with every upgrade!
RELIANOID Community Edition v7
Featuring the latest stable version of RELIANOID’s Community Edition, this Fanless Hardware Load Balancer includes great performance improvements, enhanced security features, usability refinements, and advanced management capabilities, making it ideal for any demanding workloads.
Responsive Web and Command Line Interfaces
Web graphic user interfaces with improved usability, accessibility and responsive view to be used in different devices.
Rest Json API v4
Load balancing automation is possible with a REST JSON API to view, create, delete and modify resources in the load balancer: farms, backends, farm guardian, statistics, network interfaces and more.
Limitless system
The RSA series are not limited in CPU usage, CPU cores, maximum bandwidth, number of farms or backends. You get the full features and the maximum settings from the system with every product! Use all the resources available without restrictions in terms of the number of cores, memory used, throughput or other system parameters.
Optimized for Hardware Appliances
Support of optimized drivers and systems to gather better performance for broad multi-core based hardware appliance.
Optimized for multi-core hardware vendors
Support of a broad set of drivers to be able to transform your hardware server in a complete ADC ready to be installed in multi vendors servers and optimized for multi-core processors.
Features
Multi-Layer Load Balancing
Supports L2, L3, L4, and L7 load balancing for seamless traffic management across WAN, applications, data centers, and services.
Broad Protocol Compatibility
Works with major protocols (TCP, UDP, HTTP, HTTPS, DNS, etc.) and applications like MS Exchange, Citrix, and Lync.
Advanced HTTP/HTTPS Features
Offers session persistence, SSL certificates, reverse proxy, and other features for secure and efficient app delivery.
Intelligent Health Checks & Scalability
Monitors server health and balances traffic using algorithms like round robin, CPU load, and least connections.
High Availability
Configuration active-passive stateless clustering ensure high availability.
Advanced Network Management
Supports VLANs, virtual IPs, IPv6, and NAT/DSR topologies for complex network configurations.
Automation
REST+JSON API for automation.
Requirements
Network Interface Configuration
Minimum of one Network Interface Card (NIC) is required, with two recommended—one dedicated for administration purposes and another for production services. This configuration ensures optimized performance and security for the Fanless Hardware Load Balancer.
Operating System
RELIANOID firmware already included, follow the quick setup guide to access to the appliance the first time.
Licensing
The software included in the RNA Community Edition is provided under the terms of the GNU Affero General Public License v3.
The licensing model for RNA products is tied to the number of instances deployed. Therefore, the number of appliance licenses required corresponds directly to the number of deployments, regardless of resource allocation such as CPU, memory, or throughput per instance.
If only a single node is necessary, you will need to purchase one appliance license. However, if a clustered load balancing service is required, you will need two appliance licenses.
Each appliance can be updated and upgrade to a major release with incremental software releases provided through a valid Support Plan with a simple update procedure.
Additionally, redeployment during the appliance’s lifecycle is permitted as long as the hostname remains unchanged. If you need to change the hostname of the appliance without a related redeployment, an appliance certificate can be reissued.
FAQs
How Does the Evaluation Work?
The evaluation of this product is free and allows you to deploy, create, and utilize the full version for one month by default. If you need an extension beyond this period, you can request it to our Sales Team. During the evaluation phase, free pre-sales support is available. Once you’ve decided to make a purchase, you simply need to obtain a definitive activation certificate without redeploying the appliance.
How to Upgrade from Community to Enterprise Edition?
Seamless upgrade from Community to Enterprise Edition is fully supported without redeploying the appliances and required migration of configuration files are automatically performed. Contact with our Team for more information.
How Many Licenses Are Needed to Build a Cluster?
To build a cluster and achieve high availability (HA), you will need to acquire two licenses with the same Support Level.
The RELIANOID cluster operates as a stateful cluster, meaning that if the primary node goes down, the second node automatically takes over without any disruption to clients. This functionality is possible because the second node continuously synchronizes configurations, automatic processes, connections, and user sessions, ensuring both nodes remain online at all times. This setup allows for a quick switch between nodes.
Is Support Included with the Appliance?
Support services are not included with the appliance and must be purchased separately to receive updates, security advisories, patches, hotfixes, and assistance from our specialized Support Team. We offer three different support plans tailored to various application requirements, ranging from updates-only options to 24×7 support services. First year of support will be mandatory.
Are Disaster Recovery and Development licenses available?
Yes, we offer special licenses for Disaster Recovery and Development purposes. Please reach out to our Sales Team for more information.
RNA1004 Fanless HW Appliance Datasheet
(updated December, 2024)
Use cases for Fanless Hardware Load Balancer
Load Balancing Applications
Optimally balances traffic across on-premises or cloud applications, ensuring smooth performance and efficient resource distribution for business-critical applications.
Workloads
Enhances performance and availability for mission-critical business applications hosted in on-premises or cloud environments, ensuring uninterrupted service.
Disaster Recovery
Supports hardware-based disaster recovery solutions by efficiently distributing traffic during failover processes, improving recovery times and data availability.
Cloud-based Deployments
Facilitates efficient traffic distribution for application workloads deployed in hybrid or cloud environments, ensuring scalable and reliable performance across multiple locations.
Get Started with RELIANOID Fanless Hardware Load Balancer
Ready to optimize your infrastructure with Fanless Hardware Load Balancer? Contact us today to discover how RELIANOID’s solution can enhance your data-center environment, providing unmatched reliability, security, and scalability for your application workloads and services.
